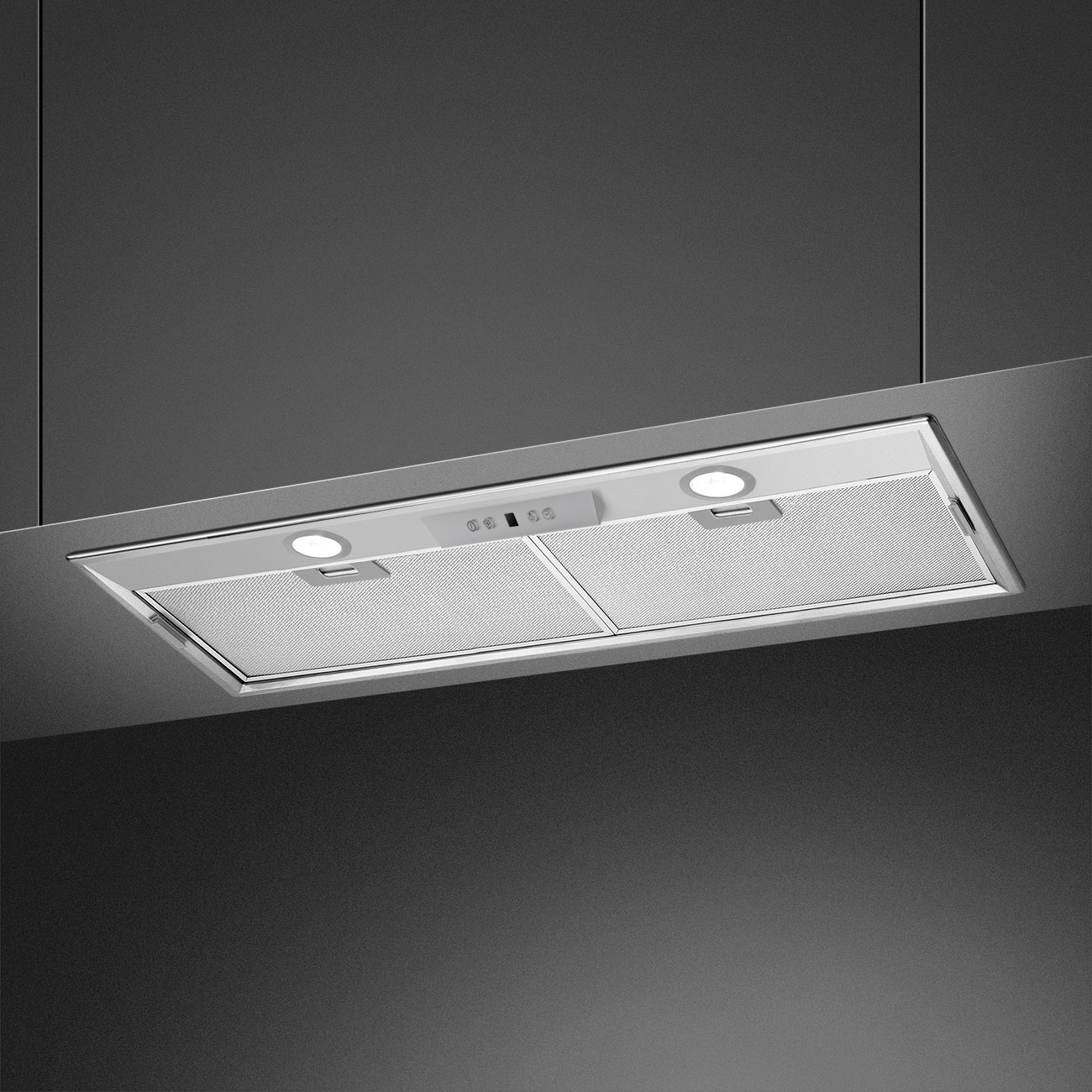

Smeg 70cm Stainless Steel Fully Integrated Extractor – KSEG7XSA

Smeg 70cm Stainless Steel Fully Integrated Extractor – KSEG7XSA

M7,800.00
M7,800.00
Sale Sold out
Shipping calculated at checkout.

Hood – Universale – KSEG7XSA

Product family – Hood
Hood Type – Integrated hood
Aesthetics – Universale
Colour – Stainless steel
Hood width – 70 cm
Energy efficicency class ( EEC) – C

TYPE


Product family: Hood
Hood Type: Integrated hood
Hood width: 70 cm
Extraction: Extraction
EAN code: 8017709271350

AESTHETICS


Colour: Stainless steel
Finishing: Satin
Aesthetics: Universale
Design: Fully integrated
Material: Stainless steel
Type of steel: Brushed

PROGRAMS / FUNCTIONS

Intensive/turbo setting: when extra fast extraction is required.
No. of speeds: 3
Intensive speed: Yes

CONTROLS


Control setting: Electronic buttons
Led color: Red

TECHNICAL FEATURES

Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen.
No. of lights: 2
Light type: LED
Light Power: 5 W
Light color temperature scale (°K): 3000 °K
Free outlet maximum capacity: 691 m³/h
Motor power: 275 W
No. of filters: 2
Anti-grease filters: Aluminium
Minimum distance from GAS hob: 650 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 500 mm
Non return valve: Yes

PERFORMANCE / ENERGY LABEL

???Energy_Label_C-Right-DarkOrange_72dpi???
Energy efficicency class ( EEC): C
Fluid Dynamic Efficiency class (FDEC): C
Grease Filtering Efficiency Class (GFEC): C
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 109 kWh/a
Fluid Dynamic Efficiency (FDE): 19.4
Lighting Efficiency (LE): 76.1 lux/W
Grease Filtering Efficiency (GFE): 76 %
Air flow at minumum speed (Qmin): 288 m³/h
Air flow at maximum speed (Qmax): 559 m³/h
Air flow at boost speed (Qboost): 691 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 54 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 70 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 74 dB(A)
Power consumption in stand-by mode (Ps): 0.49 W
Time increase factor (F): 1.3
Measured air flow rate at best efficiency point (Qbep): 448 m³/h
Measured air pressure at best efficiency point (Pbep): 334 Pa
Measured electric power input at best efficiency point (Wbep): 215 W
Nominal Power consumption of the light system (WL): 10 W
Average illumination of the light on the cooking surface (Emiddle): 761 lux
Sound power level at highest setting (Lwa): 70 dB(A)

ELECTRICAL CONNECTION


Electrical connection rating: 285 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1000 mm

SPEED 1


Extraction rate IEC 61591: 288 m³/h
Noise level IEC 60704-2-13: 54 dB(A)
Power: 90 W

SPEED 2


Extraction rate IEC 61591: 428 m³/h
Noise level IEC 60704-2-13: 62 dB(A)
Power: 95 W

SPEED 3


Extraction rate IEC 61591: 559 m³/h
Noise level IEC 60704-2-13: 70 dB(A)
Power: 127 W

INTENSIVE SPEED


Extraction rate (IEC 61591): 691 m³/h
Noise level IEC 60704-2-13: 74 dB(A)
Power: 166 W

LOGISTIC INFORMATION


Dimensions of the product (mm): 252x724x289
Width: 724 mm
Depth (mm): 289 mm
Product Height (mm): 252 mm
Net weight (kg): 7.400 kg
Gross weight (kg): 8.030 kg
