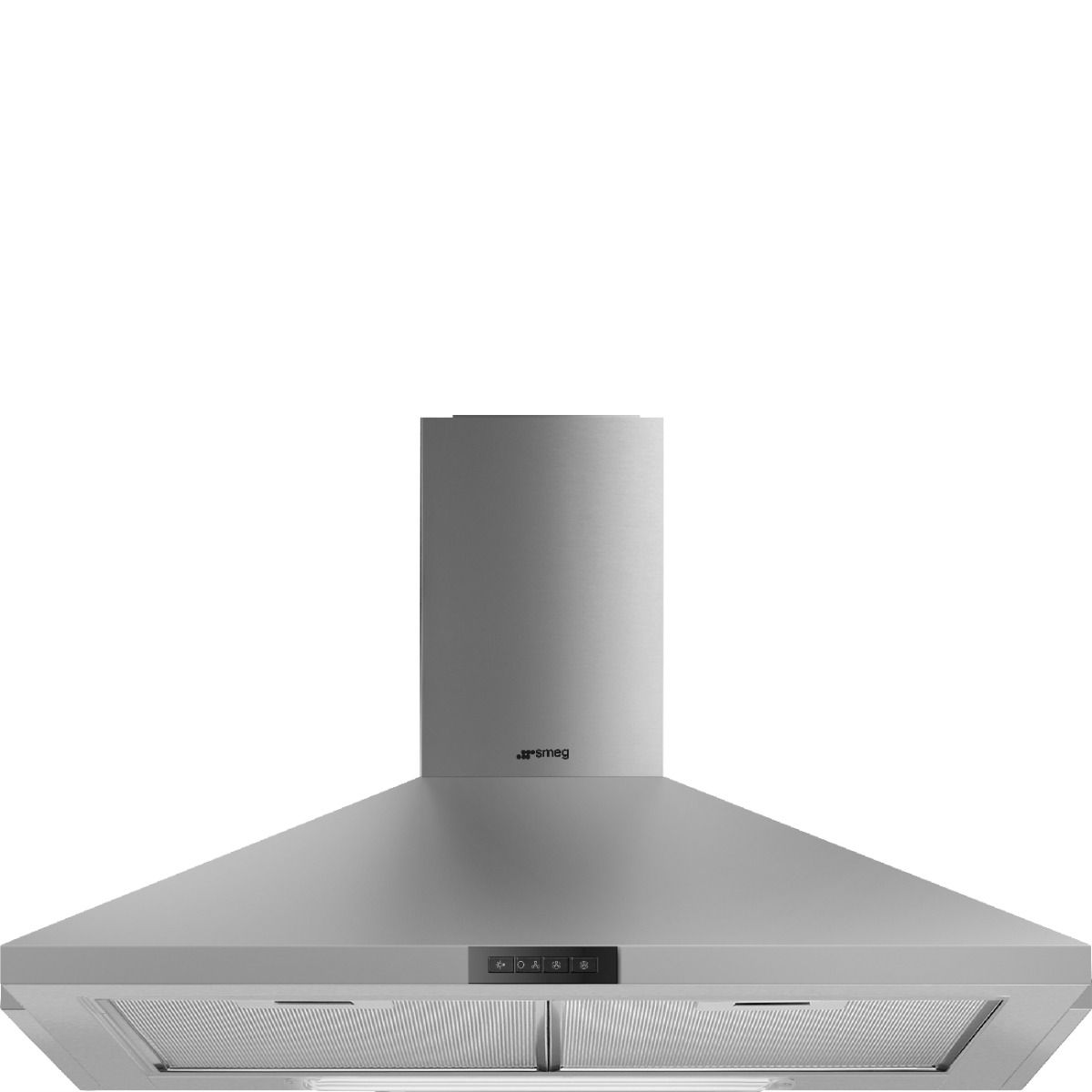

Smeg 60cm Chimney Extractor

TYPE
Product family: Hood
Hood Type: Decorative wall hood
Hood width: 60 cm
Extraction: Extraction
EAN code: 8017709235154

AESTHETICS
Colour: Stainless steel
Finishing: Satin
Aesthetics: Universale
Design: Chimney
Components finishing: Stainless steel
Material: Stainless steel
Type of steel: Brushed

CONTROLS
Control setting: Buttons

TECHNICAL FEATURES
No. of lights: 2
Light type: LED
Light Power: 3 W
Light color temperature scale (°K): 2700 °K
Free outlet maximum capacity: 588 m³/h
Motor power: 180 W
No. of filters: 2
Anti-grease filters: Aluminium
Minimum distance from GAS hob: 700 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 500 mm
Non return valve: Yes

TYPE
Product family: Hood
Hood Type: Decorative wall hood
Hood width: 60 cm
Extraction: Extraction
EAN code: 8017709235154

AESTHETICS
Colour: Stainless steel
Finishing: Satin
Aesthetics: Universale
Design: Chimney
Components finishing: Stainless steel
Material: Stainless steel
Type of steel: Brushed

PROGRAMS / FUNCTIONS
No. of speeds: 3

CONTROLS
Control setting: Buttons

TECHNICAL FEATURES
No. of lights: 2
Light type: LED
Light Power: 3 W
Light color temperature scale (°K): 2700 °K
Free outlet maximum capacity: 588 m³/h
Motor power: 180 W
No. of filters: 2
Anti-grease filters: Aluminium
Minimum distance from GAS hob: 700 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 500 mm
Non return valve: Yes

PERFORMANCE / ENERGY LABEL
Energy efficicency class ( EEC): D
Fluid Dynamic Efficiency class (FDEC): E
Grease Filtering Efficiency Class (GFEC): C
Lighting Efficiency Class (LEC): C
Annual Efficiency Consumption (AEChood): 103 kWh/a
Fluid Dynamic Efficiency (FDE): 12.6
Lighting Efficiency (LE): 16.1 lux/W
Grease Filtering Efficiency (GFE): 76 %
Air flow at minumum speed (Qmin): 208 m³/h
Air flow at maximum speed (Qmax): 559 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 44 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
Time increase factor (F): 1.5
Measured air flow rate at best efficiency point (Qbep): 320 m³/h
Measured air pressure at best efficiency point (Pbep): 255 Pa
Measured electric power input at best efficiency point (Wbep): 180 W
Nominal Power consumption of the light system (WL): 6 W
Average illumination of the light on the cooking surface (Emiddle): 97 lux
Sound power level at highest setting (Lwa): 67 dB(A)
