DESCRIPTION
850 TWO SIDED FIREPLACE | BUILT-IN
850 TWO-SIDED FIREPLACE – Traditional built-in wood-burning open fire fireplace having double skin which is made of high-grade steel.
Efficient and economical heating solution for South Africa’s relatively short winter season.
A DOUBLE-SIDED FIREPLACE is commonly used to divide a room, acting as a partition while delivering heat to both areas.
For example, the fireplace can be located between the living room and the kitchen. So you can enjoy the full view of the flames from both sides.
An advantage of an open fire fireplace is that it heats up your room quickly by way of convection and radiation.
Normal (natural) convection – fireplace draws cold air from the bottom of the fireplace and releases hot air at the top.
On the other hand, radiation refers to direct heat from the burning fire as well as the heated firebox.
NOTE: FLUE PIPES AND COWL ARE NOT INCLUDED IN THE PRICE.
DOUBLE-SIDED FIREPLACE FEATURES
- Double-Sided fireplace – feed wood from both sides.
- Top exit chimney pipe
- Grate & pan with Ash draw
OPTIONAL EXTRAS
- Protective Fire screen @ R790.00

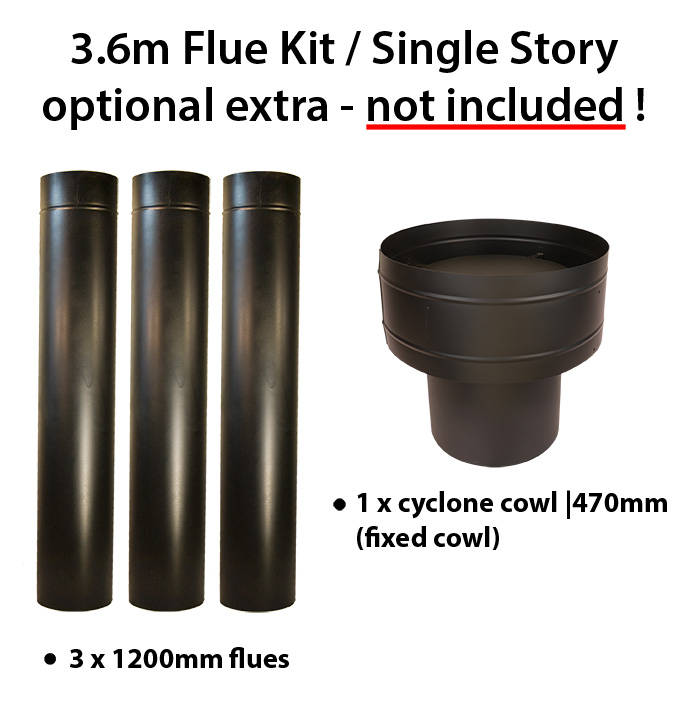

- Galvanized steel flue pipe (1 x Ø350mm x 920mm) @ R495.00
- Cyclone cowl (fixed cowl) plus a cowl base @ R1085.00
TECHNICAL DATA
- Flue diameter: ∅350 mm
- Grate and Pan dimension: Width 760 mm | Height 240 mm | Depth 550 mm
- Room heating capacity (max): 80-100 m²
FIREPLACE DIMENSION
- Overall size : Width 955 mm | Height 1010 mm | Depth 650 mm
- External frame dimension: Width 935 mm | Height 790 mm
- refer to the technical drawing below
