DESCRIPTION
850 BUILT-IN WOOD FIREPLACE | SINGLE-SIDED
Built-in wood fireplace – Traditional single-sided wood-burning fireplace made of double skin 3mm mild steel in matt black finish.
Efficient and economical heating solution for South Africa’s relatively short winter season.
Heat up your space quickly by way of convection and radiation. With convection, the fireplace draws cold air from the bottom and releases hot air at the top of the fireplace. Radiation refers to heat that radiates from the hot fire as well as the heated metal surface of the firebox.
The 850 built-in fireplace is suitable for new and existing installations – “850” refers to the build-in opening size of the fireplace is 850 mm.
It is suitable for the opening of 870mm to 920mm in width. Please refer to our technical drawing with dimensions that can be downloaded below.
This fireplace takes a Ø250mm stackable chimney pipe that is 920mm in length.
Chimney pipes should be carried all the way to the rooftop even if they run inside a bricked-up chimney. This is to prevent thick soot from building up inside the walls and improve the draw.
A typical standard single-story house requires approximately 4 chimney pipes.
NOTE: FLUE PIPES AND COWL ARE NOT INCLUDED IN THE PRICE.
This fireplace is also available in a double-sided version.
For larger living spaces please refer to our larger units :
- 1050 mm (heating capacity up to 110 m²)
OPTIONAL EXTRAS
- Protective Fire screen @ R790.00

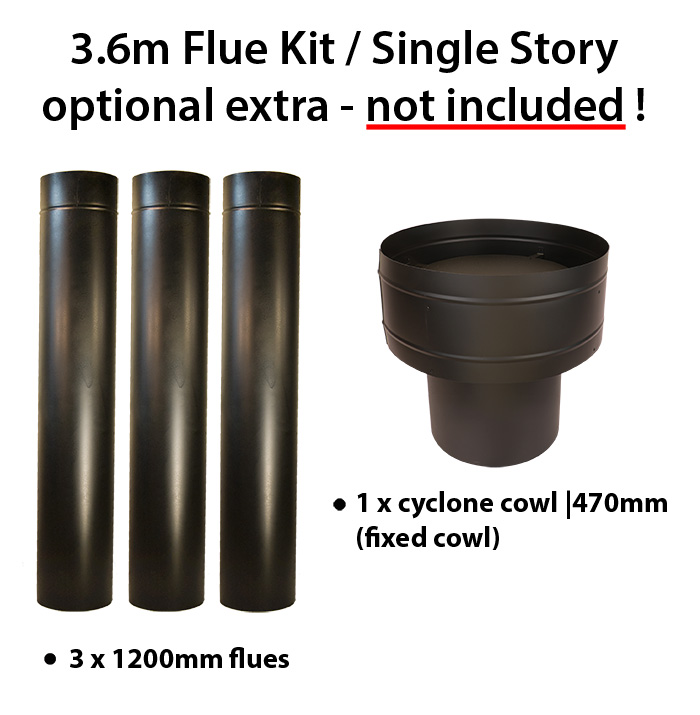

- Galvanized steel flue pipe (1 x Ø250mm x 920mm) @ R393.00
- Cyclone cowl (fixed cowl) plus cowl base : R752.00
FIREPLACE FEATURES & TECHNICAL DATA
- Top exit flue
- Flue diameter: ∅250MM
- Grate and Pan dimension: Width 750mm | Height 210mm | Depth 370mm
- Heating capacity (max): 85 M²
- Adjustable damper
FIREPLACE DIMENSION
- Overall dimensions: Width 940mm | Height 965mm | Depth 455mm
- External frame dimension: Width 940mm | Height 770mm
