800 BUILT IN BRAAI INCL. CYCLONE COWL AND FLUE PIPES

DESCRIPTION

800 BUILT-IN-BRAAI | MILD STEEL

800mm built-in De Lux braai is suitable for indoor and outdoor (undercover) applications, made of mild steel in a black finish.
The De Lux is a classic double-door design: the top door tilts up and rests against the braai frame. The bottom door drops down to form a workbench.
Both doors can be removed by unscrewing the screws at the hinges.

MATERIAL
Braai’s body and moving parts are made of 2.5mm hot roll and the doors are 1.6mm hot roll.
We also include a standard V-shape stainless steel grid, a superior alternative to the commonly sold galvanized grids.

UNIQUE FEATURES
Good lighting always comes in handy when braaing at night time or under low lighting conditions.
Your braai is fitted with a 220V downlight/spotlight to provide good lighting. We also include a halogen bulb made of glass that can withstand heat.

Another unique feature of Lava’s De Lux braais is the bottom door & serving tray.
We use specially designed L-shape clips to keep the bottom door in a horizontal position and
we canceled the double chain. This improves the overall look of the braai.

COWL
We include a round cyclone cowl (made of galvanized steel) with every built-in De Lux mild steel braai.
Lava’s cyclone cowl replaces the traditional bird-shaped rotating cowl.
Cyclone cowls are more efficient than rotating cowls and easier to maintain – in other words they do not require lubrication.

RUST AND CORROSION
This mild steel braai is designed for indoor use OR outdoor use provided it is undercover and does not come in direct contact with water (rain, garden sprinklers, etc).
It is not suitable for outdoor coastal areas even if installed undercover unless the patio is completely enclosed to avoid the corrosive sea salt in the air.
It is advisable to paint the braai regularly.

5-YEAR GUARANTEE
A standard 5-year guarantee is applicable to the braai box against warping, excluding moving parts.
Please refer to our warrantee certificate.

STANDARD BUILT-IN BRAAI INCLUDES

• V-Shape stainless steel grid
• 220V Downlight / Spotlight
• Potjie hook
• Ashpan
• Ember maker

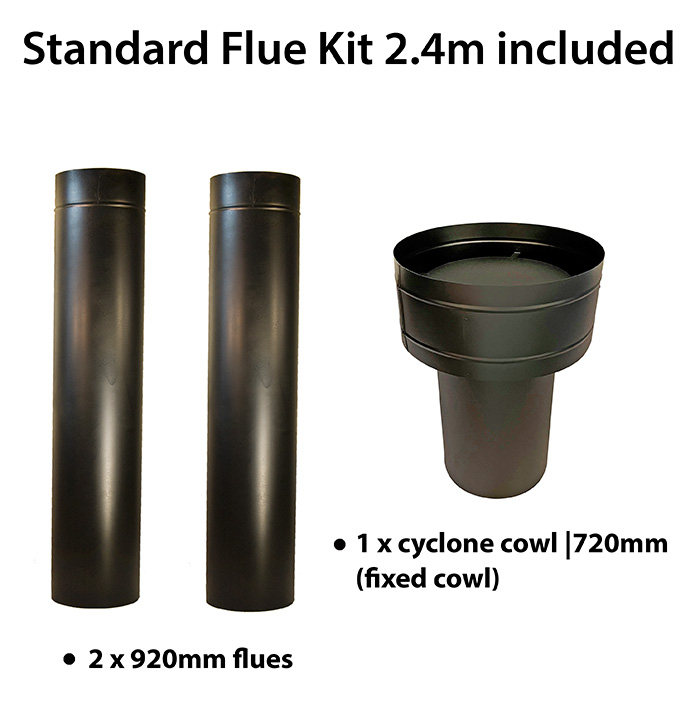

• 2.4m  flue kit (2 flue pipes + cyclone cowl)

TECHNICAL DATA

• Actual firebox dimension:  (W) 806 mm  (H) 1025 mm  (D) 530 mm
• Recommended Braai opening : (W) 856 mm  (H) 1025 mm (D) 580mm *
  * We recommend you allow for a 25mm gap on either side of the braai and 50mm at the back of the braai for expansion.
• Flue diameter: ∅250MM
• Stainless Steel braai grid : (L) 560MM X (W) 465MM

PACKAGING & WEIGHT

• Body : Width 850mm | Length 600mm | Height 1000mm  – Weight 95Kg
• Flues : Width 600mm | Length 600mm | Height 1250mm  – Weight 20Kg
