DESCRIPTION
750 BUILT-IN FIREPLACE | SINGLE SIDED
750 Built-in fireplace – Single single sided wood burning fireplace made of double skin 3mm mild steel in matt black finish.
Efficient and economical heating solution for South Africa’s relatively short winter season.
Heat up your space quickly by way of convection and radiation. With convection the fireplace draws cold air from the bottom and releases hot air at the top of the fireplace. Radiation refers to heat that radiates from the hot fire as well as the heated metal surface of the fire box.
The 750 built in fireplace is suitable for new and existing installations – “750” refers to the build-in opening size of the fireplace being 750 mm.
It is suitable for opening of 755mm to 810mm in width. Please refer to our technical drawing with dimensions that can be downloaded below.
This fireplace takes a Ø200MM stackable chimney pipe that is 920MM in length.
Chimney pipes should be carried all the way to the roof top even if they run inside a bricked up chimney. This is to prevent thick soot from building up inside the walls.
A standard single story house usually requires 4 chimney pipes.
NOTE : FLUE PIPES AND COWL ARE NOT INCLUDED IN THE PRICE.
This fireplace is also available in a double sided version.
For larger living spaces please refer to our larger units :
- 850 mm (heating capacity up to 85 m²)
- 1050 mm (heating capacity up to 110 m²)
OPTIONAL EXTRAS
- Protective Fire screen @ R790.00

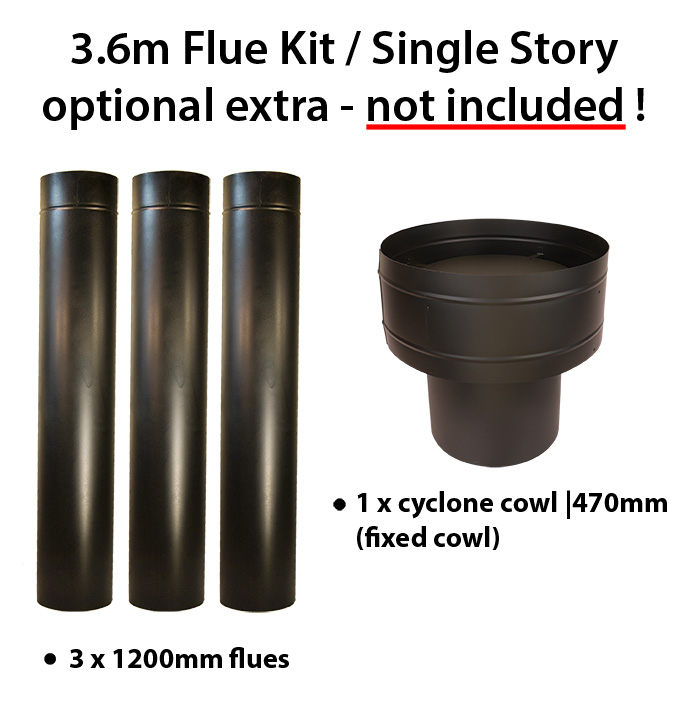

- Galvanized steel flue pipe (1 x Ø200mm x 920mm) @ R328.00
- Cyclone cowl (fixed cowl) plus Base : R650.00
BUILT IN FIREPLACE FEATURES & TECHNICAL DATA
- Top exit flue
- Flue diameter : ∅200MM
- Grate and Pan dimension: Width 640mm | Height 210mm | Depth 350mm
- Heating capacity (max): 75 M²
- Adjustable damper
FIREPLACE DIMENSION
- Overall dimensions : Width 830mm | Height 870mm | Depth 430mm
- External frame dimension : Width 830mm | Height 670mm
